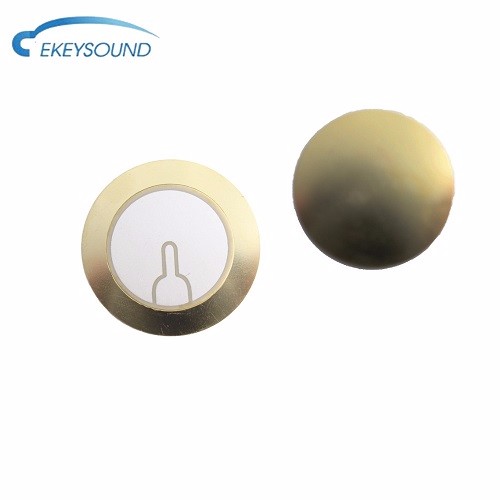

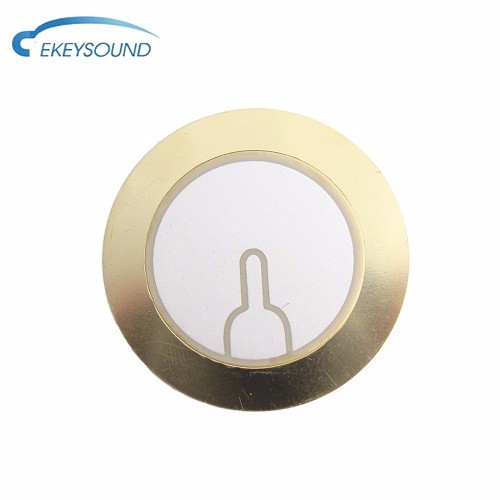

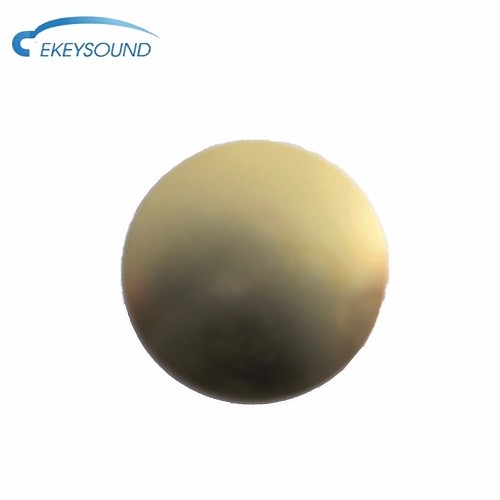

35MM Brass PIEZO ELEMENT with ROHS

PIEZO ELEMENT

Φ35*H0.55mm

  • Product Detail
No.
Item
Unit
Specification
1
Max. input voltage
Vp-p
MAX 30
2
Resonant frequency
KHz
2.9 ± 0.5
3
Resonant impedance
ohm
MAX 300
4
Electrostatic capacity
pF
25000±30%
5
Operating temp
ºC
- 20 ~ +70
6
Storage temp
ºC
-30 ~ + 80
7
Dimension
mm
Φ35.0 x H 0.52
8
Weight (MAX)
gram
0.8
9
MATERIAL
Brass
10
DC Resistance
MIN 100
11
Environmental Protection Regulation
RoHS
12
Leading Pin
Wire Type
