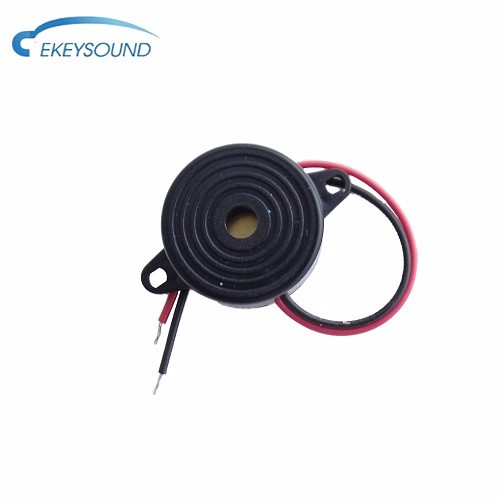

23*12MM PIEZO DC BUZZER

PIEZO BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. PIEZO BUZZER
  5. Φ23*H12mm
Φ23*H12mm
  1. Φ23*H12mm
  2. Φ23*H12mm
  3. Φ23*H12mm
  4. Φ23*H12mm
  5. Φ23*H12mm
  6. Φ23*H12mm

Φ23*H12mm

Send Inquiry Live chat
  • Product Detail
Diameter
23mm
Height
12.0mm
Operating Voltage
5-30Vdc
Standard input voltage
12Vdc
Current
≤15mA
Oscillation Frequency
3300Hz
SPL
≥80dB at 30cm
Housing material
ABS ( Black )
Pin
Tin Plated Brass(Sn)
