45mm receiver for hemlt

RECEIVER

  1. Home
  2. Products
  3. RECEIVER
  4. Φ45*H9.5mm

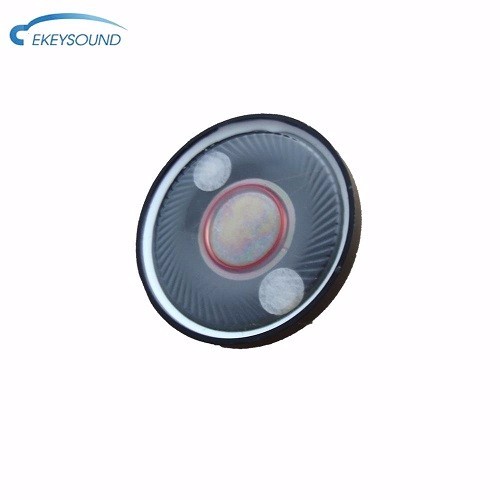

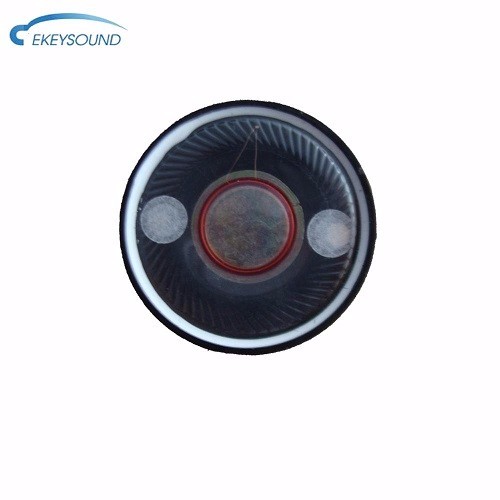

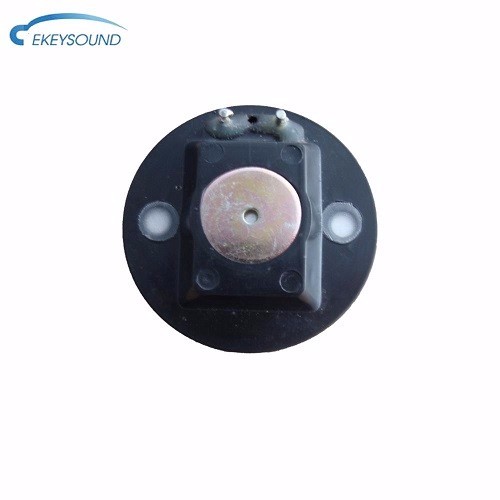

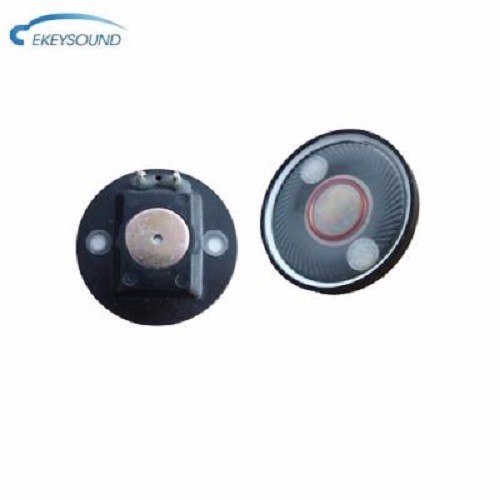

Φ45*H9.5mm
  1. Φ45*H9.5mm
  2. Φ45*H9.5mm
  3. Φ45*H9.5mm
  4. Φ45*H9.5mm

Φ45*H9.5mm

Send Inquiry Live chat
  • Product Detail
Diamater
45MM
Height
9.5MM
Rated Impedance
1000Ω ± 20% at 1 KHz
Rated Input Power
10mW
Max Input Power
30mW
S.P.L
106± 3 dB at 1 KHz, Input 1000mV (Sine wave) measured with IEC 318 coupler
(without leakage 0 dB =20 uPa=0.0002uBar).
Frequency Range
300 ~3400Hz
Frame
ABS
Magnet
Nd-Fe-B
Diaphragm
PET
