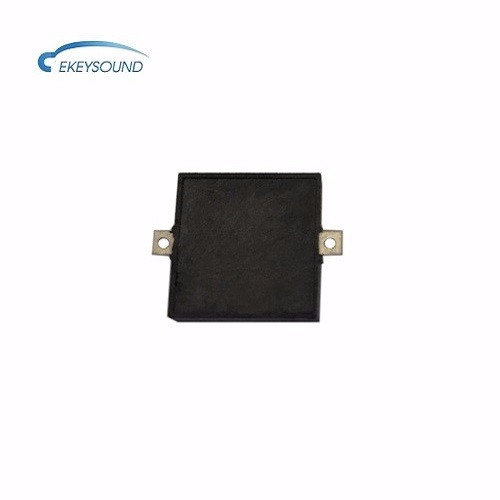

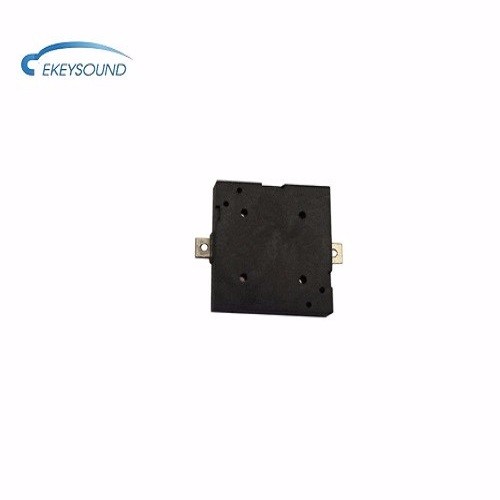

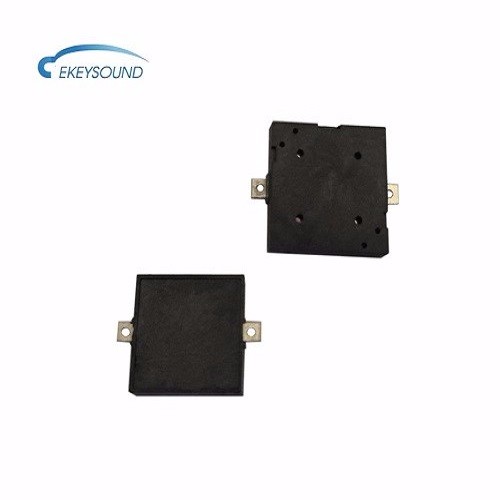

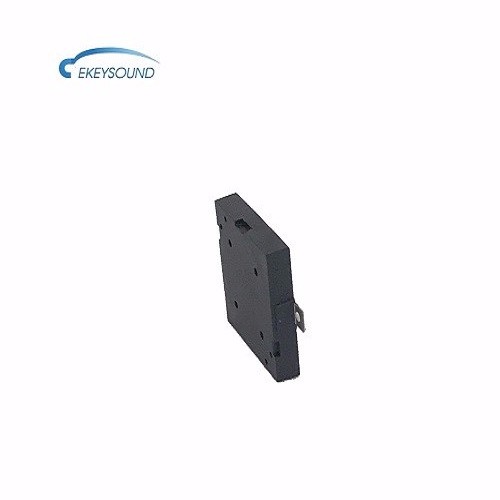

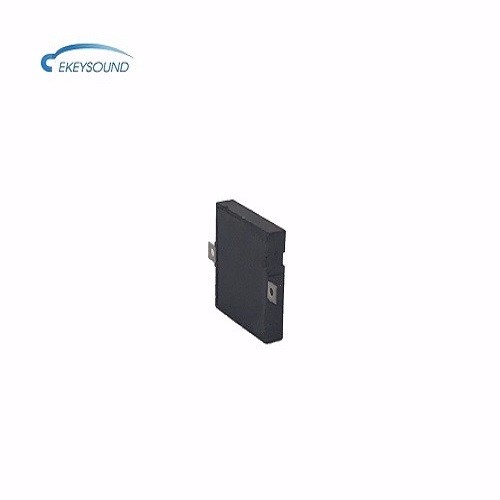

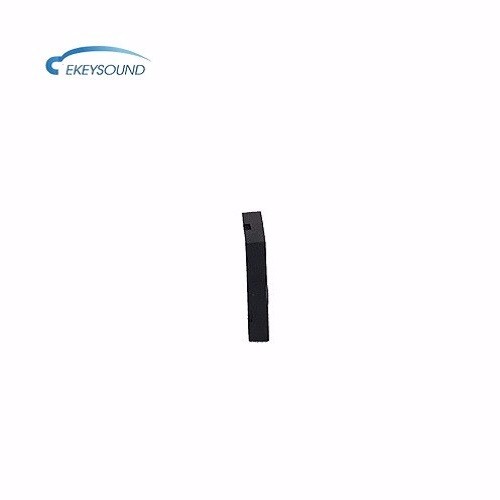

SMD Piezo Buzzer with RoHS

PIEZO BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. PIEZO BUZZER
  5. Φ13*Φ13*H2.5mm
Φ13*Φ13*H2.5mm
  1. Φ13*Φ13*H2.5mm
  2. Φ13*Φ13*H2.5mm
  3. Φ13*Φ13*H2.5mm
  4. Φ13*Φ13*H2.5mm
  5. Φ13*Φ13*H2.5mm
  6. Φ13*Φ13*H2.5mm

Φ13*Φ13*H2.5mm

Send Inquiry Live chat
  • Product Detail
Diameter
L13MM*W13mm
Height
2.5mm
Rated Voltage
3Vp-p
Operating Voltage
1~25Vp-p
Current
MAX. 3
Capacitance
16000pF
Sound Pressure Level
MIN. 75dB
Tone
Continue
Resonant frequency
4000Hz
Leading Pin
SMD
