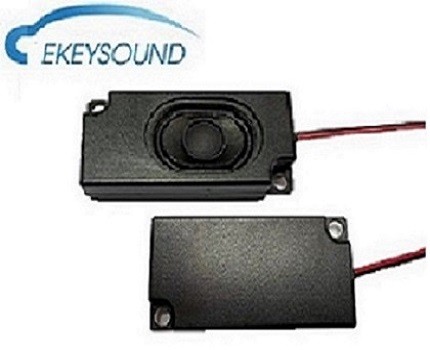

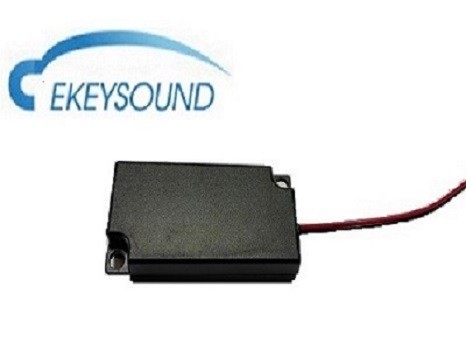

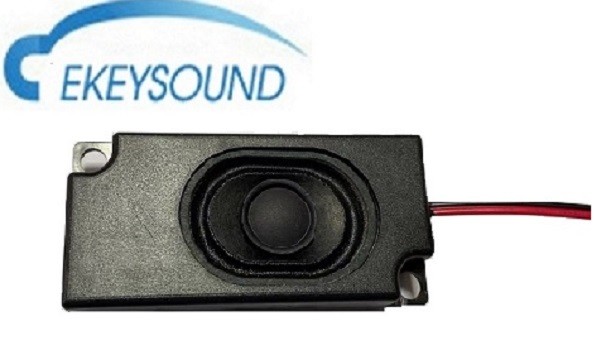

EKS7033145L300-R08W3.0-A
  1. EKS7033145L300-R08W3.0-A
  2. EKS7033145L300-R08W3.0-A
  3. EKS7033145L300-R08W3.0-A

EKS7033145L300-R08W3.0-A


Diamater
70*33MM
Height
14.5MM
Rated Impedance
8Ω
Rated Input Power
3.0W
Max Input Power
4.0W
S.P.L
86dB(0.1W/0.1m) ± 3 dB
at AVE 0.8K 1.0K 1.2K 1.5K Hz
Resonance Frequency (Fo)
750±20%Hz
Frame
ABS
Magnet
NdFeB
Diaphragm
Cloth

Send Inquiry Live chat
  • Product Detail

Specification for speaker

6.Dimensions

Unit:mm Tol:±0.5

7

CASE

1

ABS

7

Paper cone

1

Paper+cloth

6

VOICE COIL

1

Paper+cu

5

Plate

1

SPCC

4

Magnet

1

NdFeB

3

PCB Terminal

1

Paper+cu

2

YOKE

1

SPCC

1

Frame-spk

1

ABS

The material must be meet to GU-001

PART NO.

PART NAME

Q’TY

MATERIAL

REMARK

PREVIOUS：Φ50*H11.0mm

NEXT：EKS2840115LP200-R08W2.0-WP
