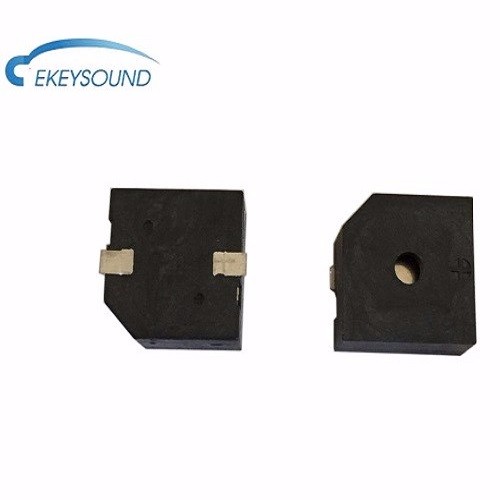

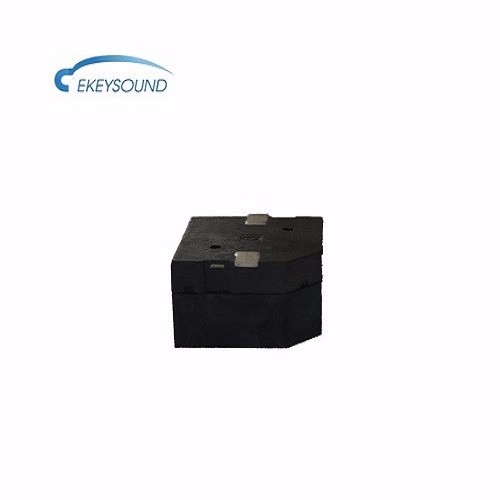

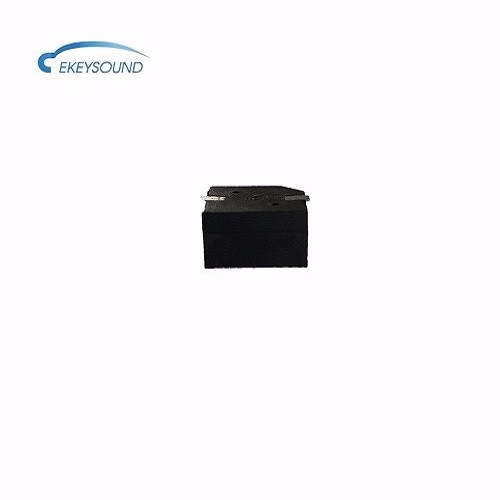

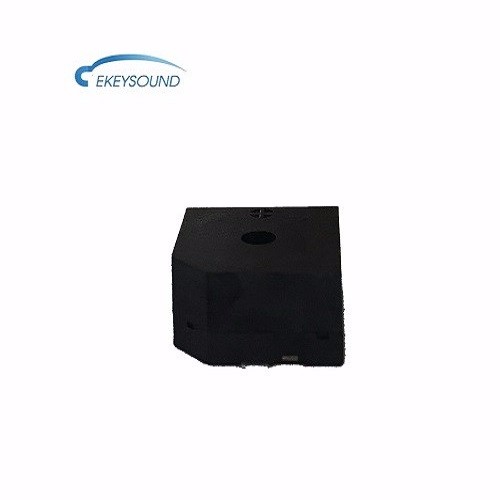

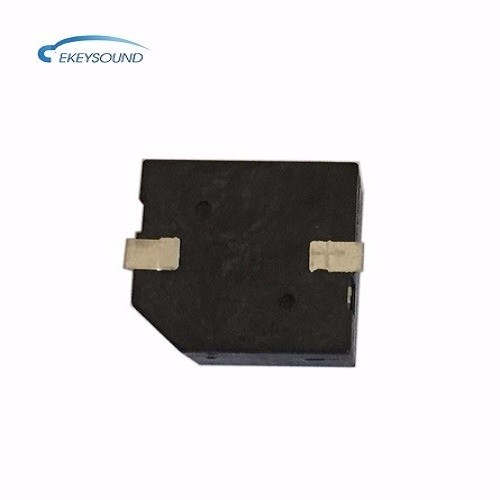

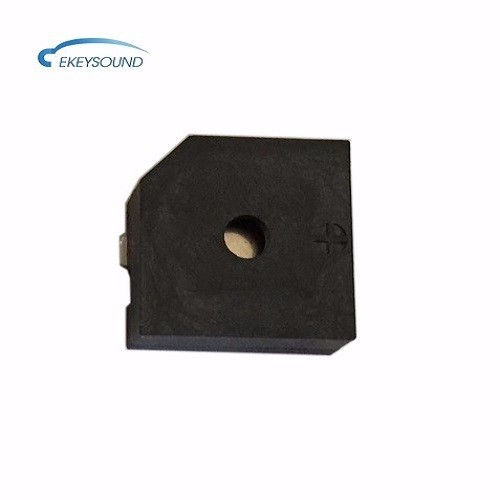

SMD Magnetic Buzzer with RoHS

SMD BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. SMD BUZZER
  5. Φ13*Φ13*H7.0mm
Φ13*Φ13*H7.0mm
  1. Φ13*Φ13*H7.0mm
  2. Φ13*Φ13*H7.0mm
  3. Φ13*Φ13*H7.0mm
  4. Φ13*Φ13*H7.0mm
  5. Φ13*Φ13*H7.0mm
  6. Φ13*Φ13*H7.0mm

Φ13*Φ13*H7.0mm

Send Inquiry Live chat
  • Product Detail
Diameter
L13MM*W13mm
Height
7.0mm
Rated Voltage
5Vo-p
Operating Voltage
3~7Vo-p
Current
MAX. 40
Coil Resistance
47Ω
Sound Pressure Level
MIN. 90
Tone
Continue
Resonant frequency
2400Hz
Leading Pin
SMD
