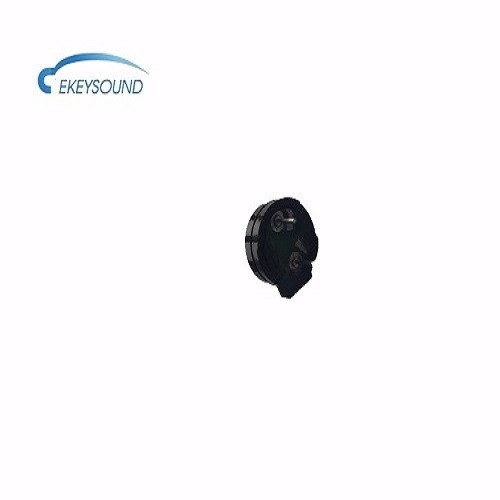

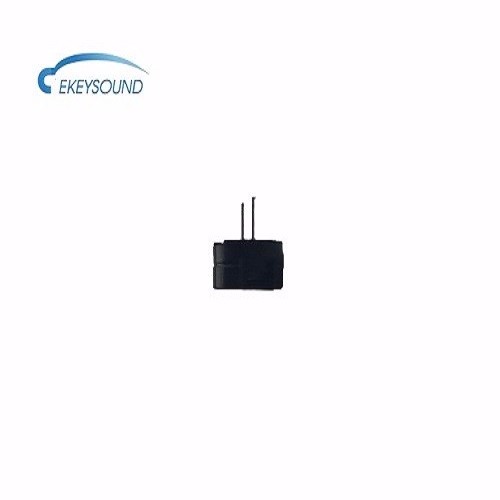

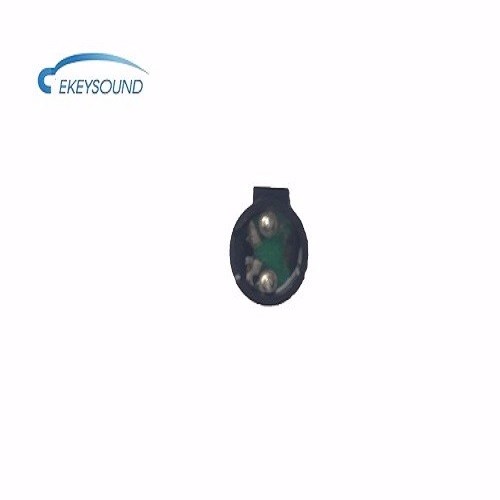

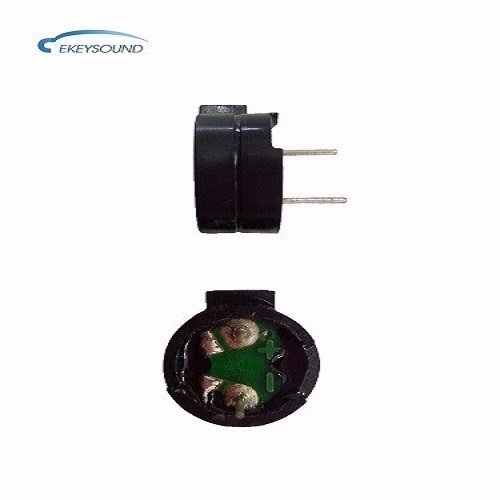

12mm Magnetic Buzzer with Side Hole

MAGNETIC BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. MAGNETIC BUZZER
  5. Φ12*H6.0mm
Φ12*H6.0mm
  1. Φ12*H6.0mm
  2. Φ12*H6.0mm
  3. Φ12*H6.0mm
  4. Φ12*H6.0mm
  5. Φ12*H6.0mm

Φ12*H6.0mm

Send Inquiry Live chat
  • Product Detail
ype
EKB12060S-6.5R(1.5V)-2731-F
EKB12060S-16R(3V)-2731-F
Diameter
12.0mm
12.0mm
Height
6.0mm
6.0mm
Coil Resistance
6.5Ω
16Ω
Standard input voltage
1.5Vo-p
3Vo-p
Current
≤60mA
≤60mA
Oscillation Frequency
2731Hz
2731Hz
SPL
≥85dB at 10cm
≥88dB at 10cm
Housing material
PBT
PBT
