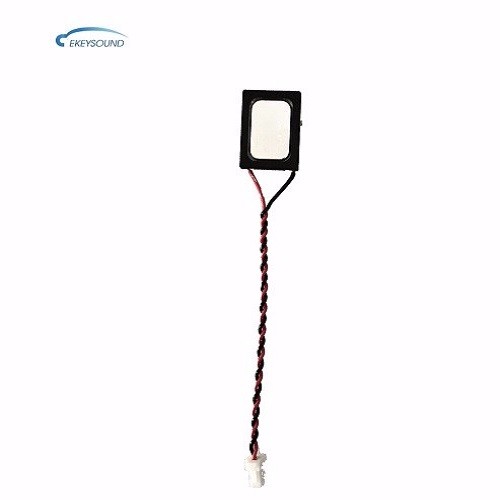

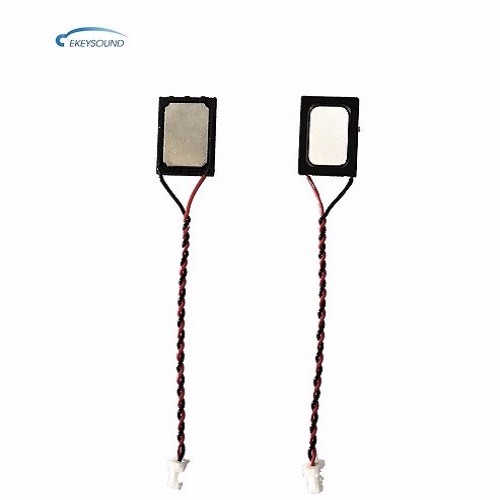

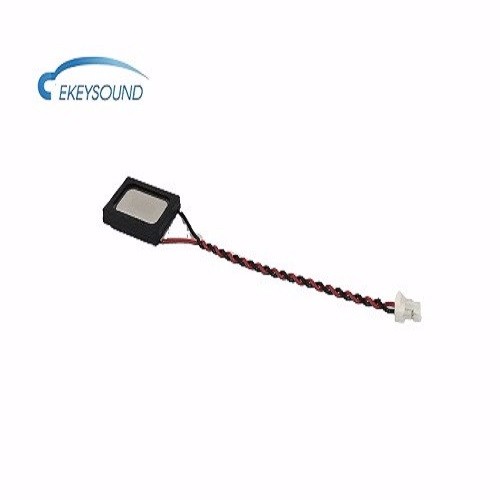

Φ15*Φ11*H3.5mm
  1. Φ15*Φ11*H3.5mm
  2. Φ15*Φ11*H3.5mm
  3. Φ15*Φ11*H3.5mm
  4. Φ15*Φ11*H3.5mm
  5. Φ15*Φ11*H3.5mm

Φ15*Φ11*H3.5mm

Send Inquiry Live chat
  • Product Detail
Diameter
L15*W11.0mm
Height
3.5mm
Rated Input Power
0.5W (in 1.0cc box)
Max Input Power
0.8W (in 1.0cc box)
Rated Impedance
8Ω ± 15%
S.P.L
83± 3 dB SPL /1V/0.1M at 2.0K Hz
Resonance Frequency (Fo)
500±20%Hz (in free air)
800±20%Hz (1.0cc box)
Diaphranm
Mylar
Magnet
NDFEB
