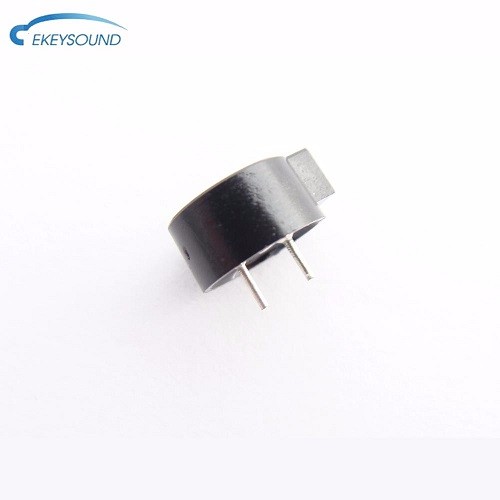

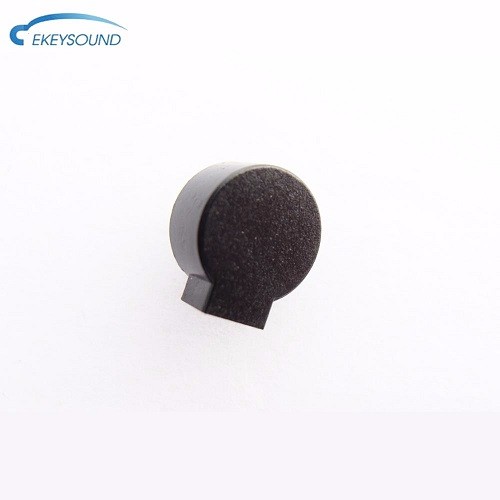

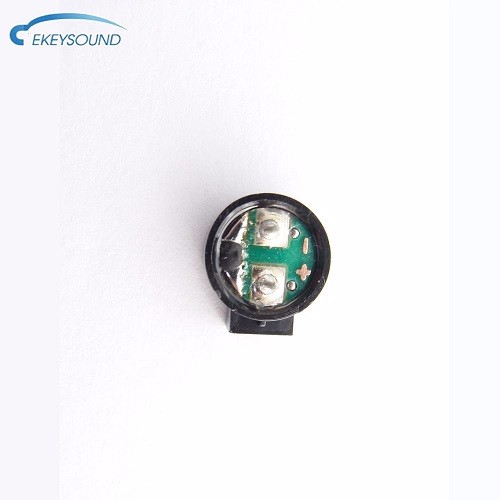

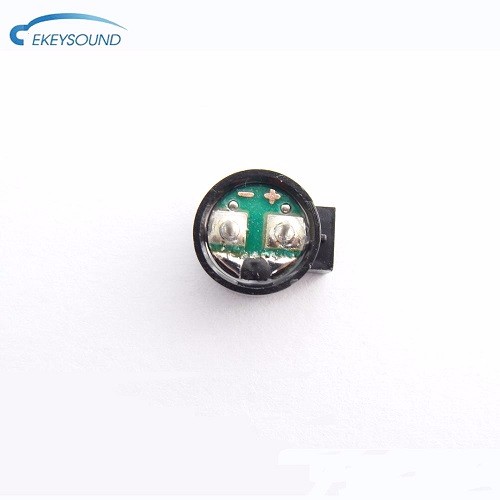

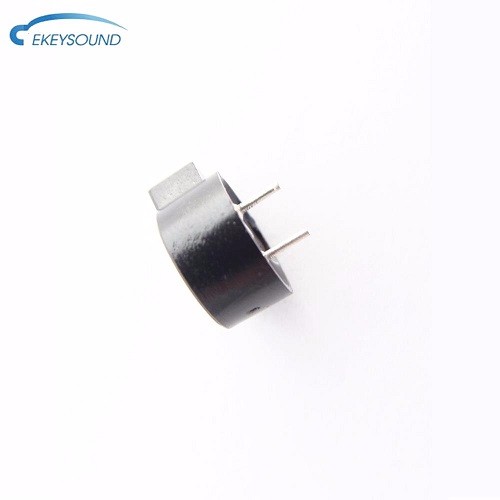

9.6*5.0MM Externally driven Magnetic Buzzer

MAGNETIC BUZZER

Φ9.6*H5.0mm

  • Product Detail
Type
EKB9650S-18R(3V)-2700-F
Diameter
9.6mm
Height
5.0mm
Standard input voltage
3Vo-p
Operating Voltage
2-4Vo-p
Current
≤70mA
Oscillation Frequency
2700Hz
SPL
≥85dB at 10cm
Housing material
PPO(BLACK)
PIN
Tin-plated copper
