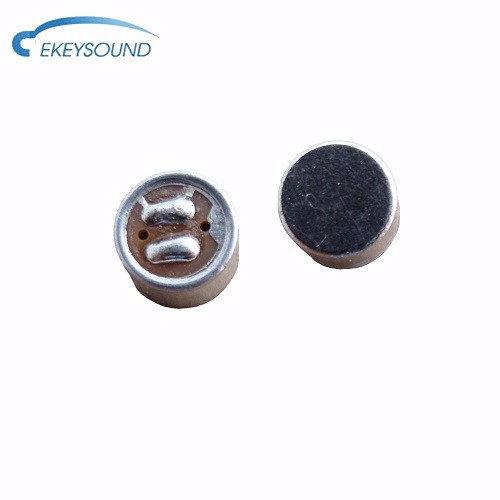

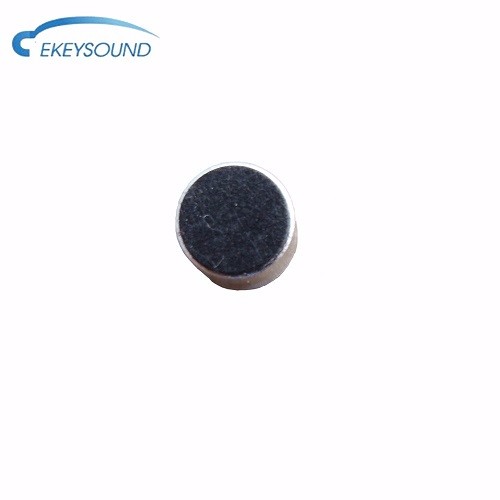

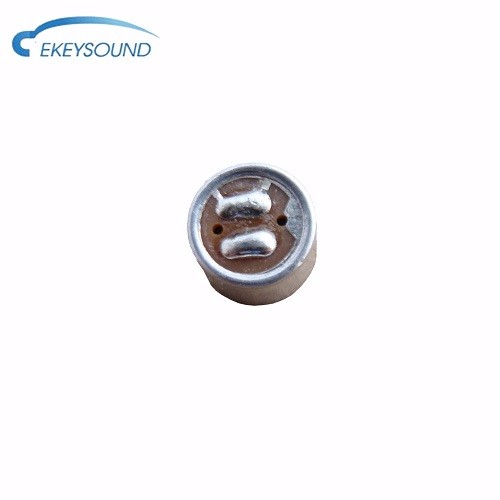

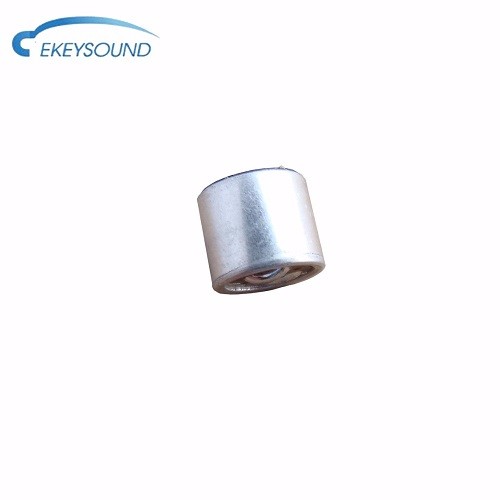

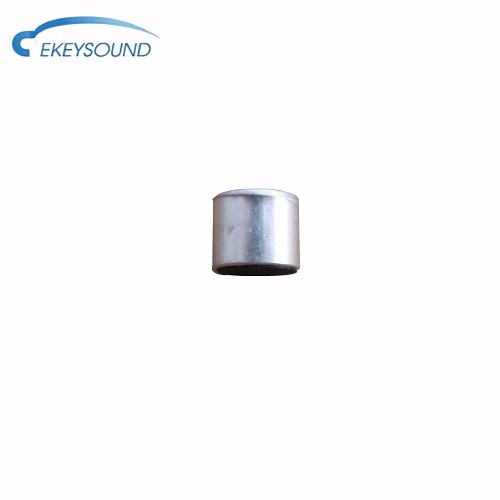

Φ6.0*H5.0mm

Φ6.0*H5.0mm

Product Detail

Size: 6.0mm *5.0mm
Application: Music, Voice, Recording, Meeting, Measurement, Amplify
Testing condition:2.0Vdc, 2.2 KΩ
Directivity: Noise Cancelling

Output Sensitivity: -40±3dB (at 1KHz, 0dB=1V/Pa)
sensitivity Reduction: within -3dB at VCC=2.0V to 1.0V
Consumption Current: ≤500µA

Specification: ROHS

NO.	Parameter	Symbol	Condition	Limits			Unit
				Min.	Center	Max.
2.1	Sensitivity	S	0dB=1V/Pa,at 1kHz	-43	-40	-37	dB
2.2	Output impedance	Z out	f=1kHz			2.2	KΩ
2.3	DCR			1.0K			KΩ
2.4	Current Consumption	IDSS	VCC =4.5V,RL=2.2KΩ			500	µA
2.5	Signal to Noise Ratio	S/N	at 1kHz S.P.L=1Pa (A-Weighted Curve)	58			dB
2.6	Decreasing Voltage	ΔS				-3	dB
2.7	Operating Voltage			1.0		10	V
