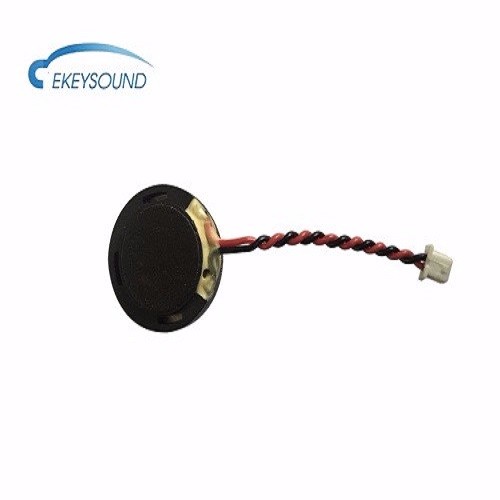

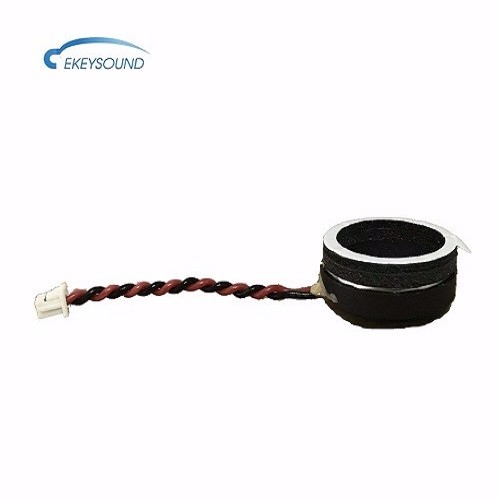

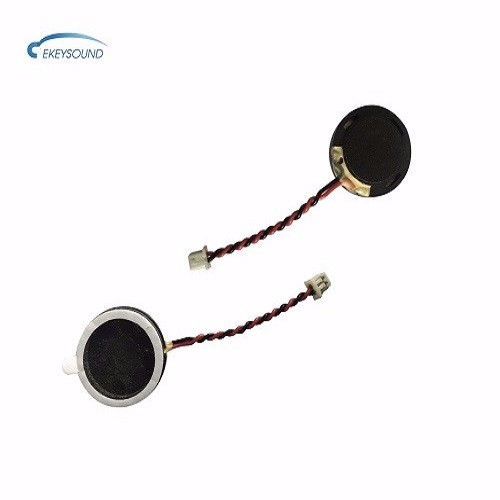

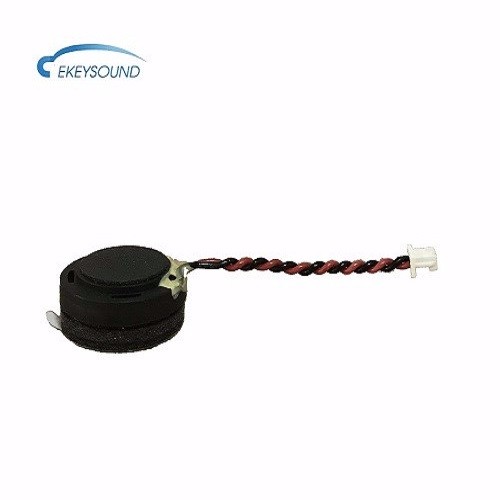

19mm Mini Speaker with High Spl

MINI SPEAKER

  1. Home
  2. Products
  3. SPEAKER
  4. MINI SPEAKER
  5. Φ19*H8.5mm
Φ19*H8.5mm
  1. Φ19*H8.5mm
  2. Φ19*H8.5mm
  3. Φ19*H8.5mm
  4. Φ19*H8.5mm
  5. Φ19*H8.5mm

Φ19*H8.5mm

Send Inquiry Live chat
  • Product Detail
Diamater
19MM
Height
8.5MM
Rated Impedance
8Ω
Rated Input Power
1.0W
Max Input Power
1.5W
S.P.L
90dB(1.0W/0.1m) ± 3 dB
at AVE 0.8K 1.0K 1.2K 1.5K Hz
Resonance Frequency (Fo)
700±20%Hz
Frame
Metal
Magnet
Nd-Fe-B
Diaphragm
Mylar
