30*20mm DC Piezo Buzzer

PIEZO BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. PIEZO BUZZER
  5. Φ30*H20mm
Φ30*H20mm
  1. Φ30*H20mm
  2. Φ30*H20mm
  3. Φ30*H20mm
  4. Φ30*H20mm
  5. Φ30*H20mm
  6. Φ30*H20mm

Φ30*H20mm

Send Inquiry Live chat
  • Product Detail
Type
EKP30200C-12V-3600-F
Diameter
30mm
Height
20mm
Standard input voltage
12Vdc
Operating Voltage
3-24Vdc
Current
≤15mA
Oscillation Frequency
3600Hz
SPL
≥90dB at 10cm
Diaphragm
FT-27T
PIN
Tin Plated Brass(Sn)

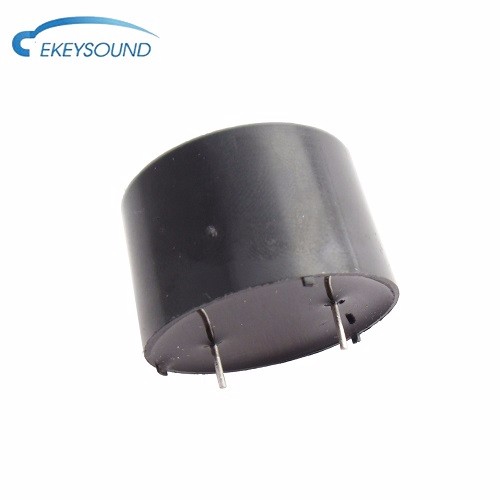

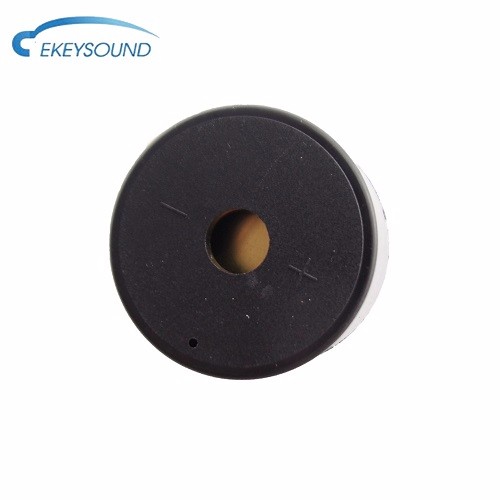

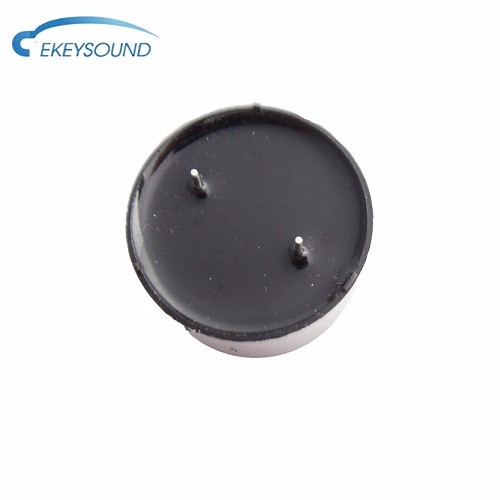

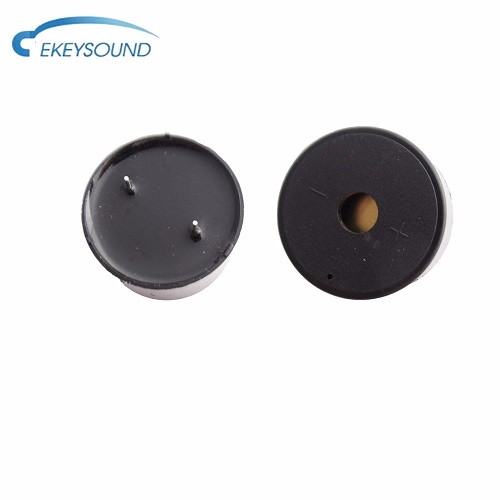

Detailed Images
