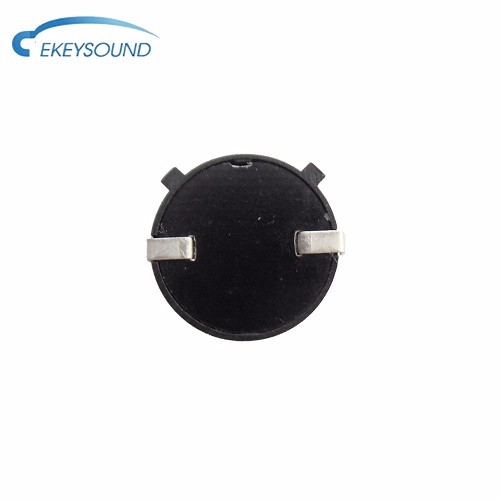

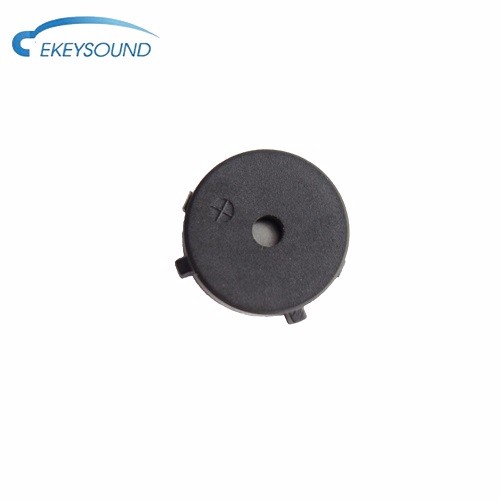

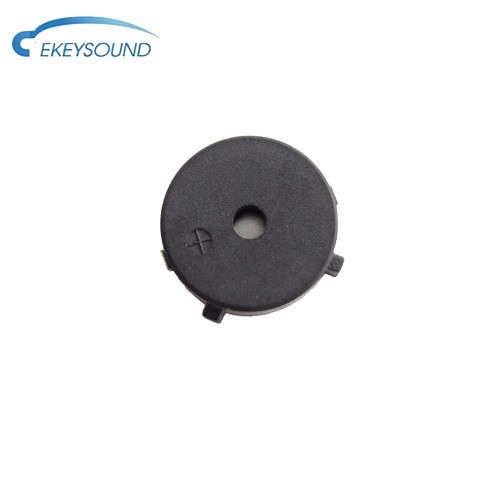

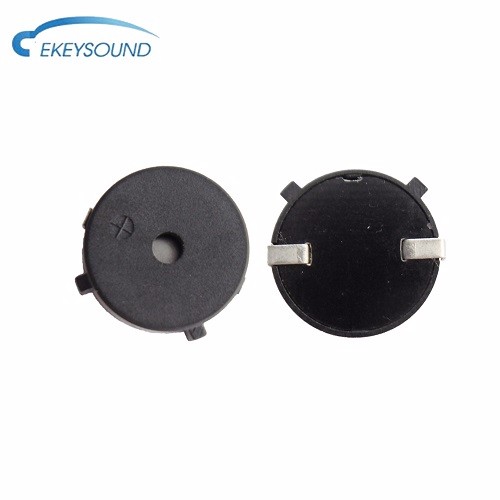

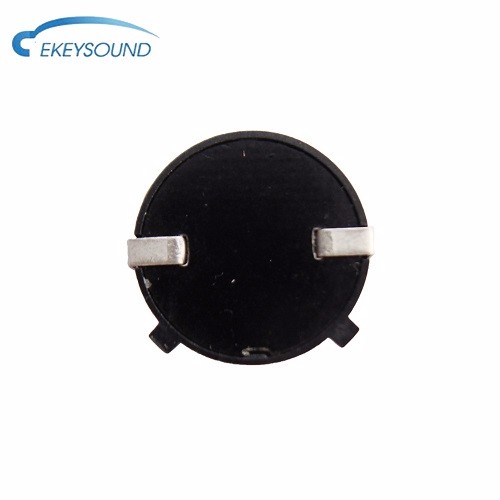

17*6.0MM Externally driven Mini Piezo Buzzer

PIEZO BUZZER

  1. Home
  2. Products
  3. BUZZER
  4. PIEZO BUZZER
  5. Φ17*H6.0mm
Φ17*H6.0mm
  1. Φ17*H6.0mm
  2. Φ17*H6.0mm
  3. Φ17*H6.0mm
  4. Φ17*H6.0mm
  5. Φ17*H6.0mm
  6. Φ17*H6.0mm

Φ17*H6.0mm

Send Inquiry Live chat
  • Product Detail
Type
EKP17060-15C-4000-F
Diameter
17.0mm
Height
6.0mm
Standard input voltage
12Vp-p
Operating Voltage
1-25Vp-p
Current
≤5mA
Oscillation Frequency
4000Hz
SPL
≥90dB at 10cm
PIN
0．7Gu
Diaphragm
FT-21T
